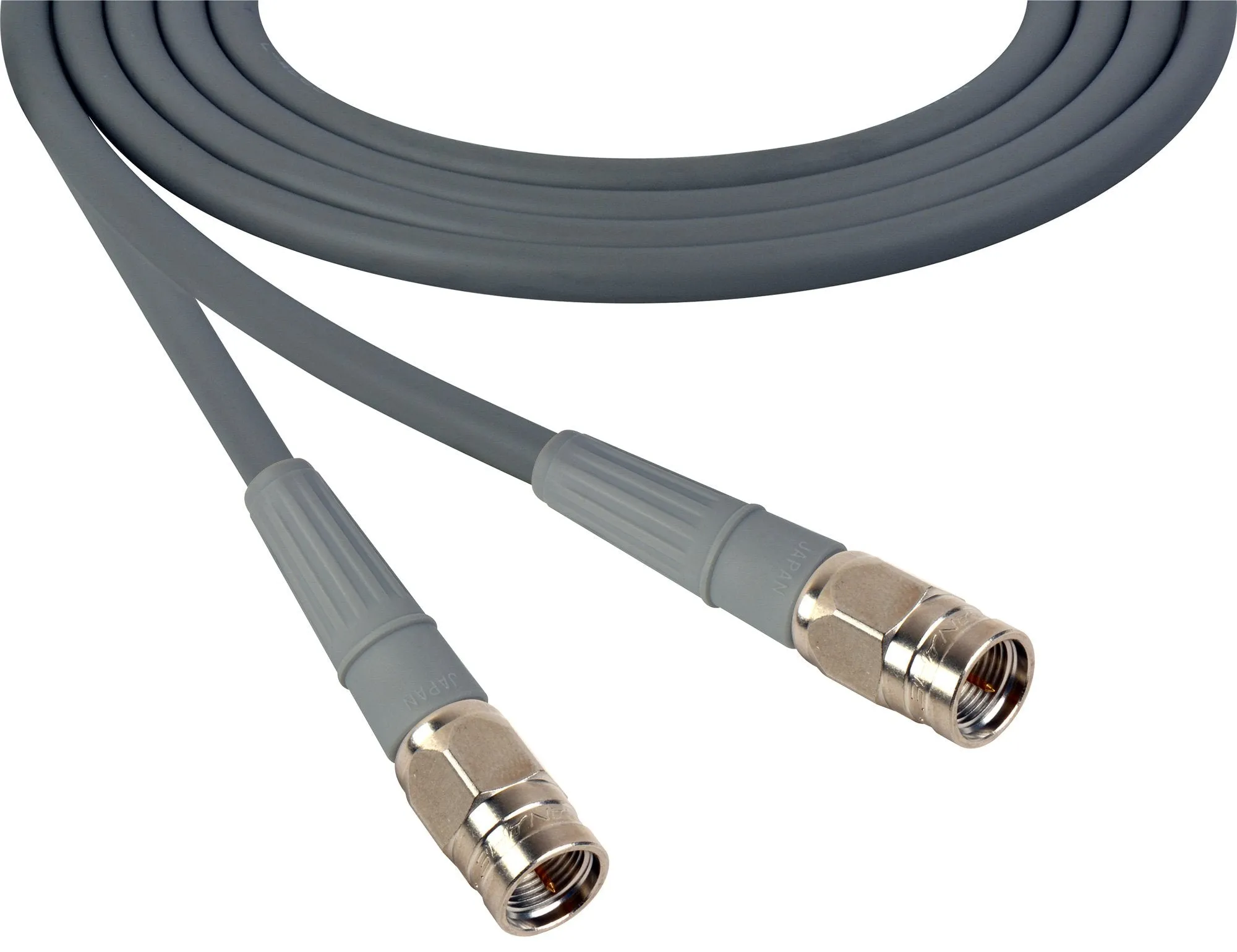

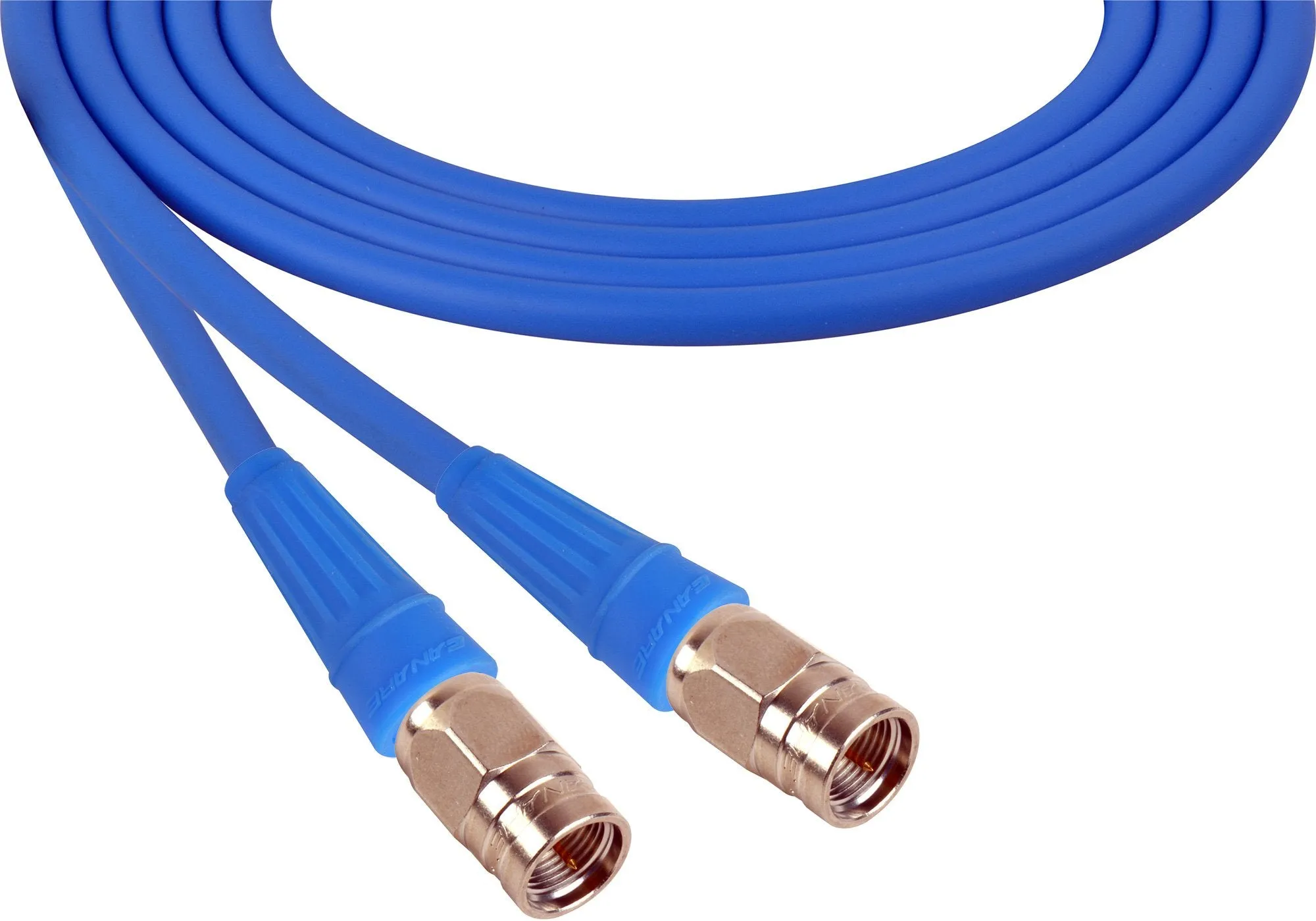

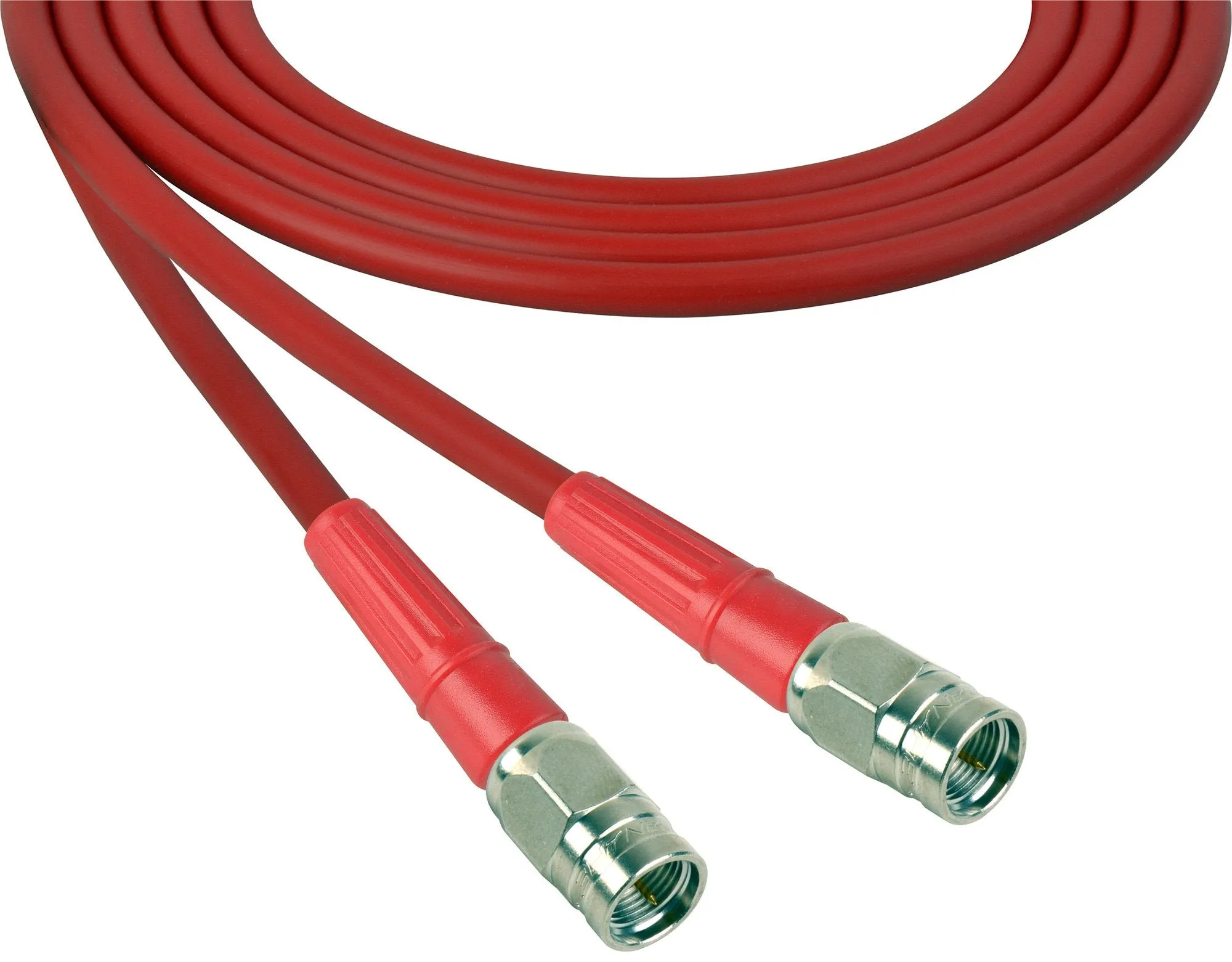

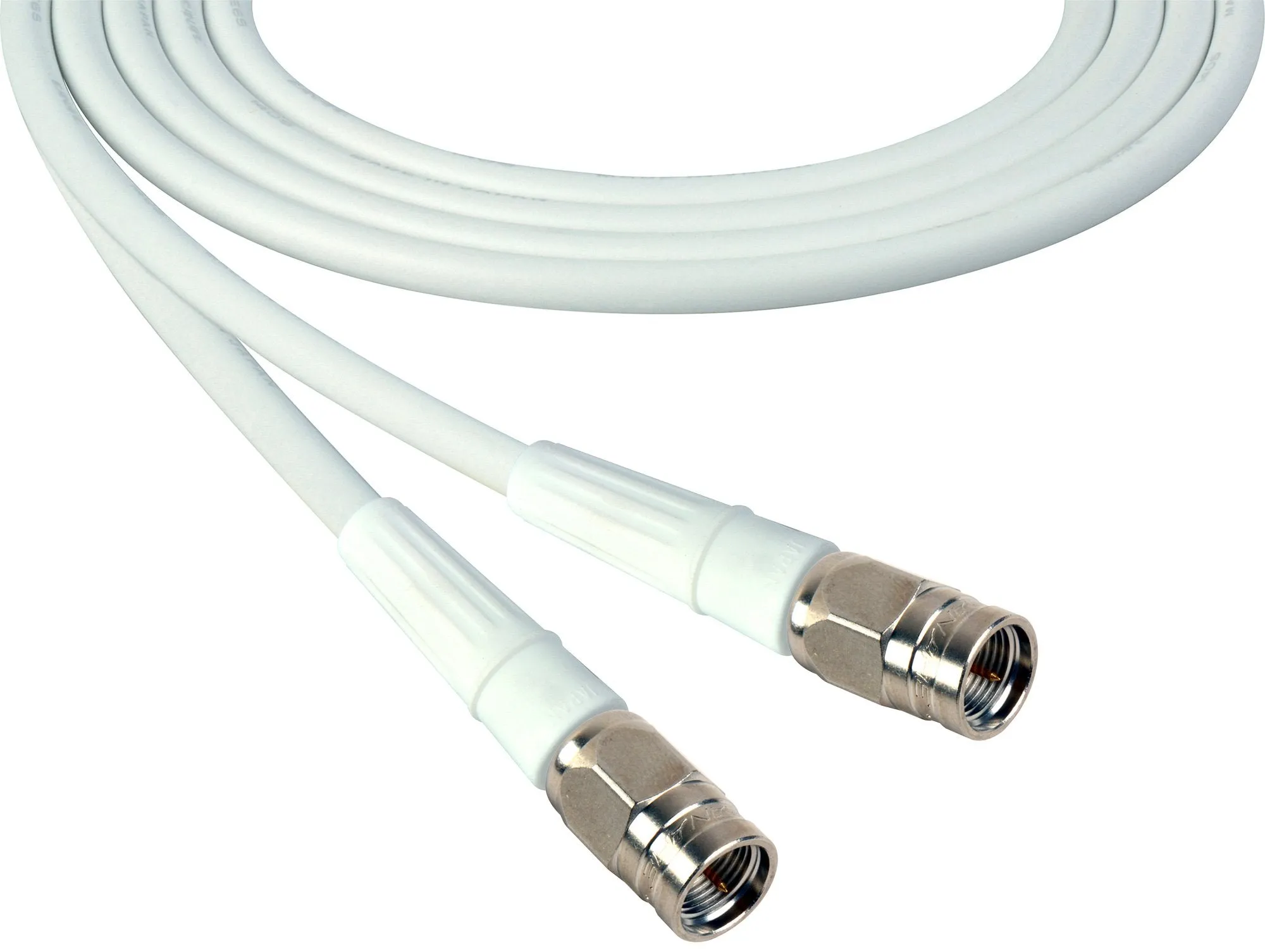

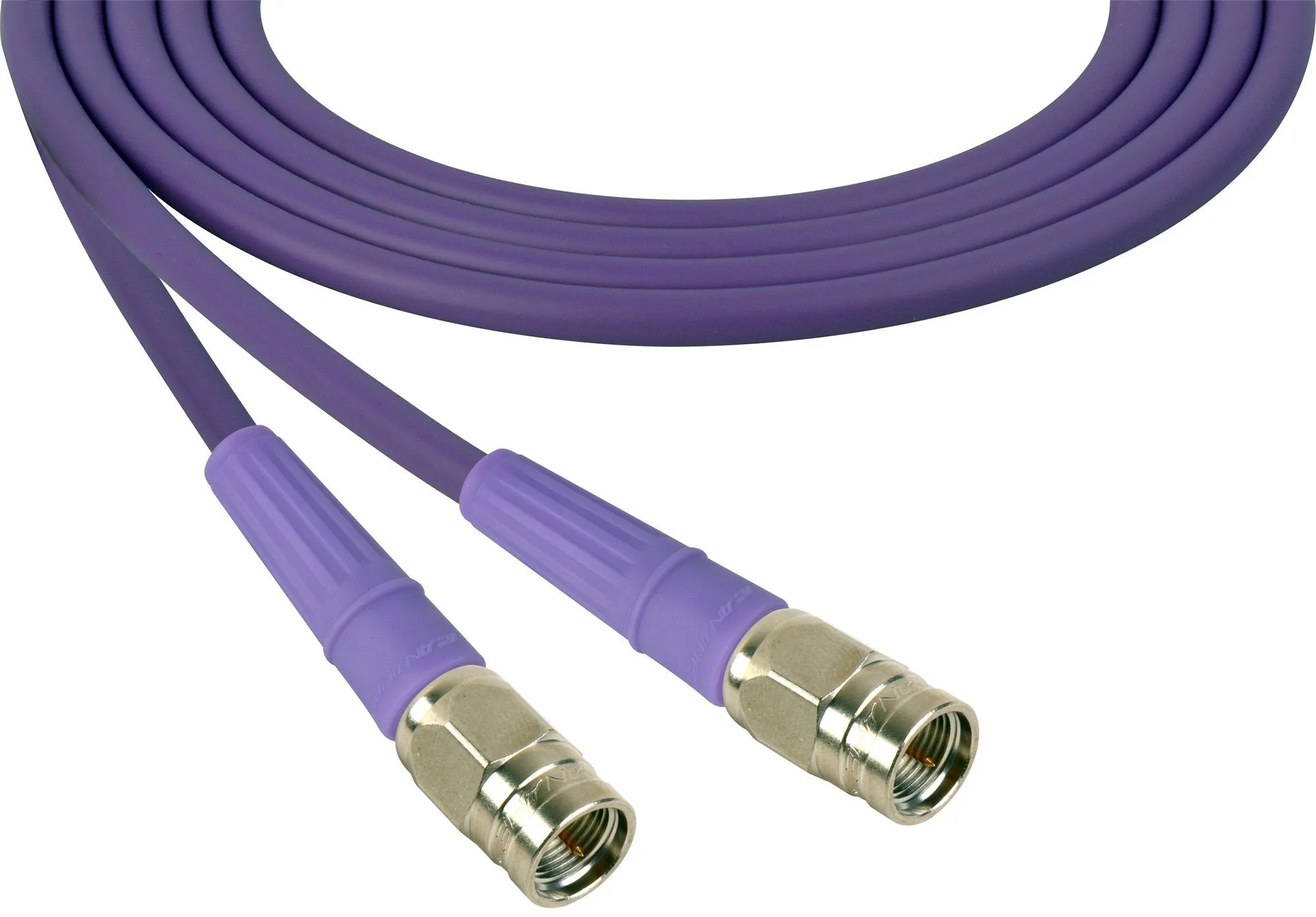

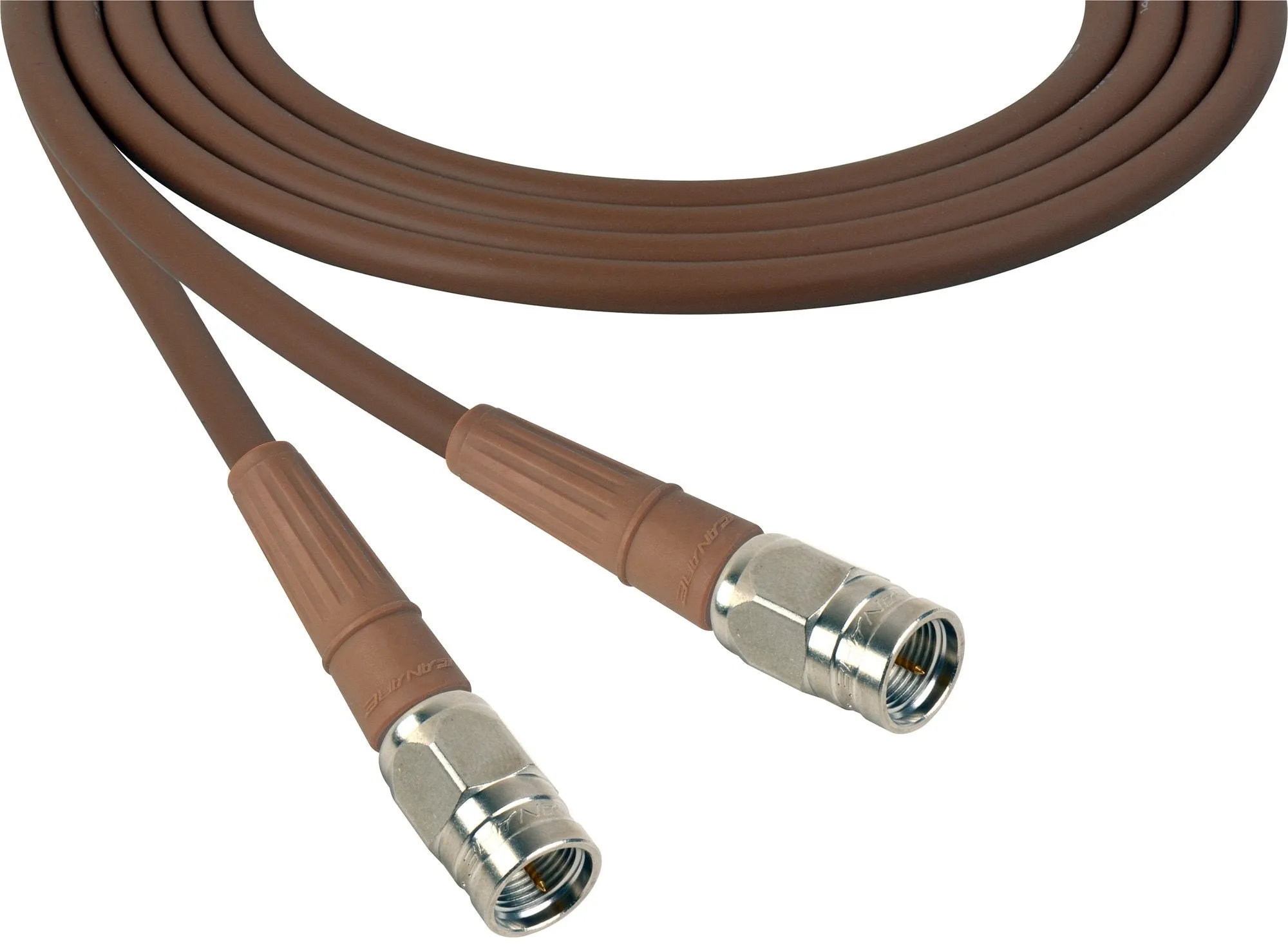

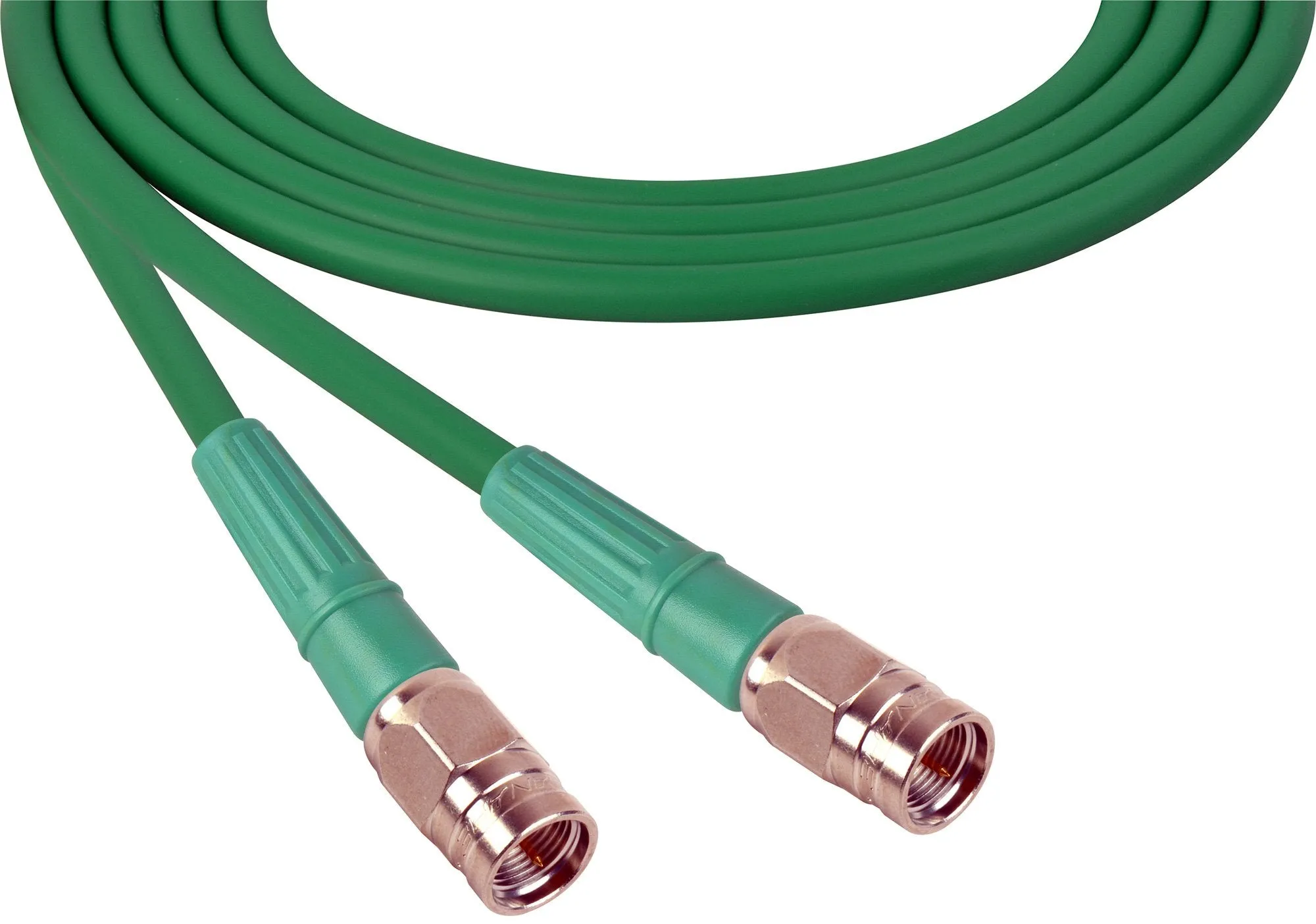

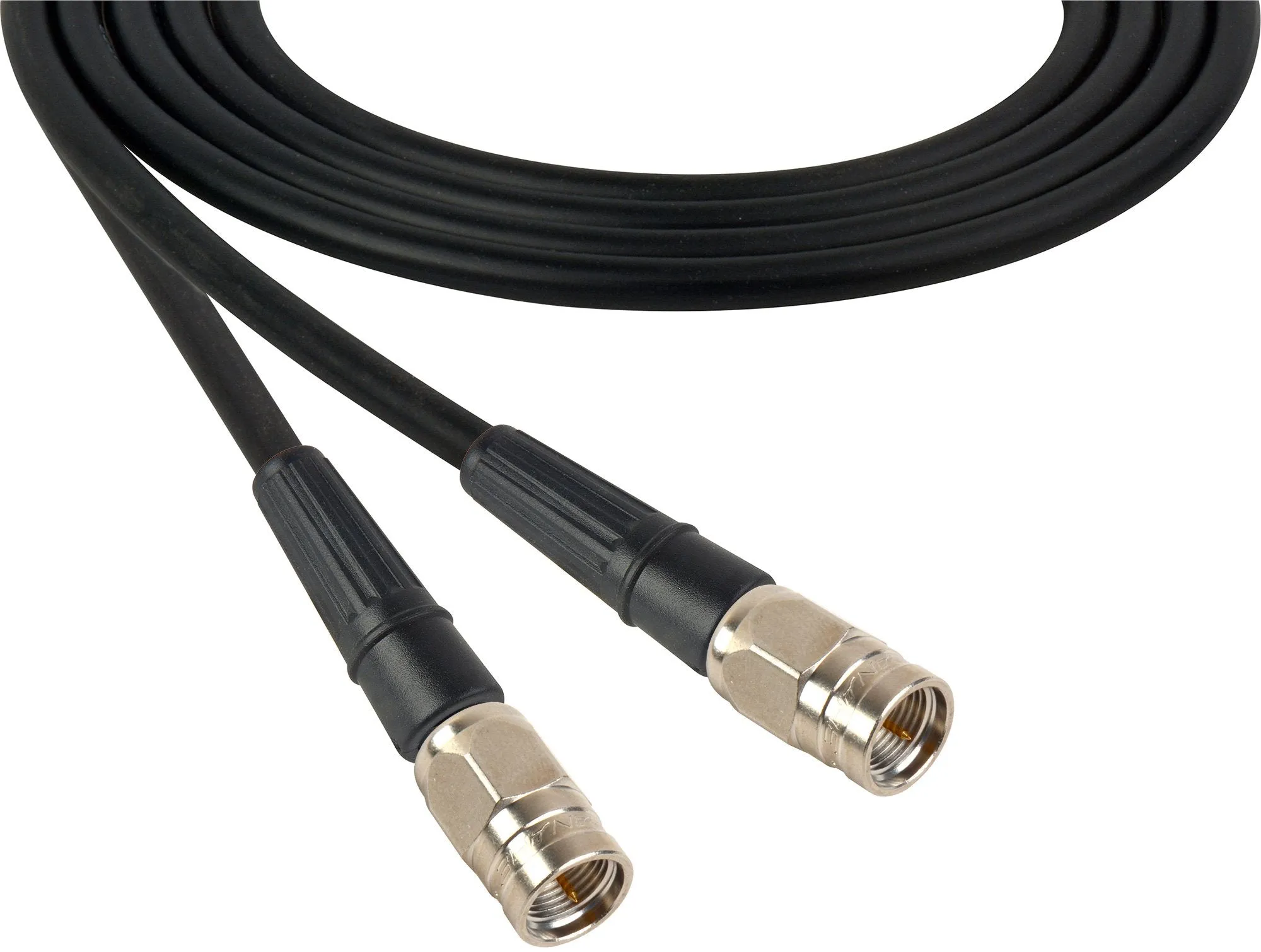

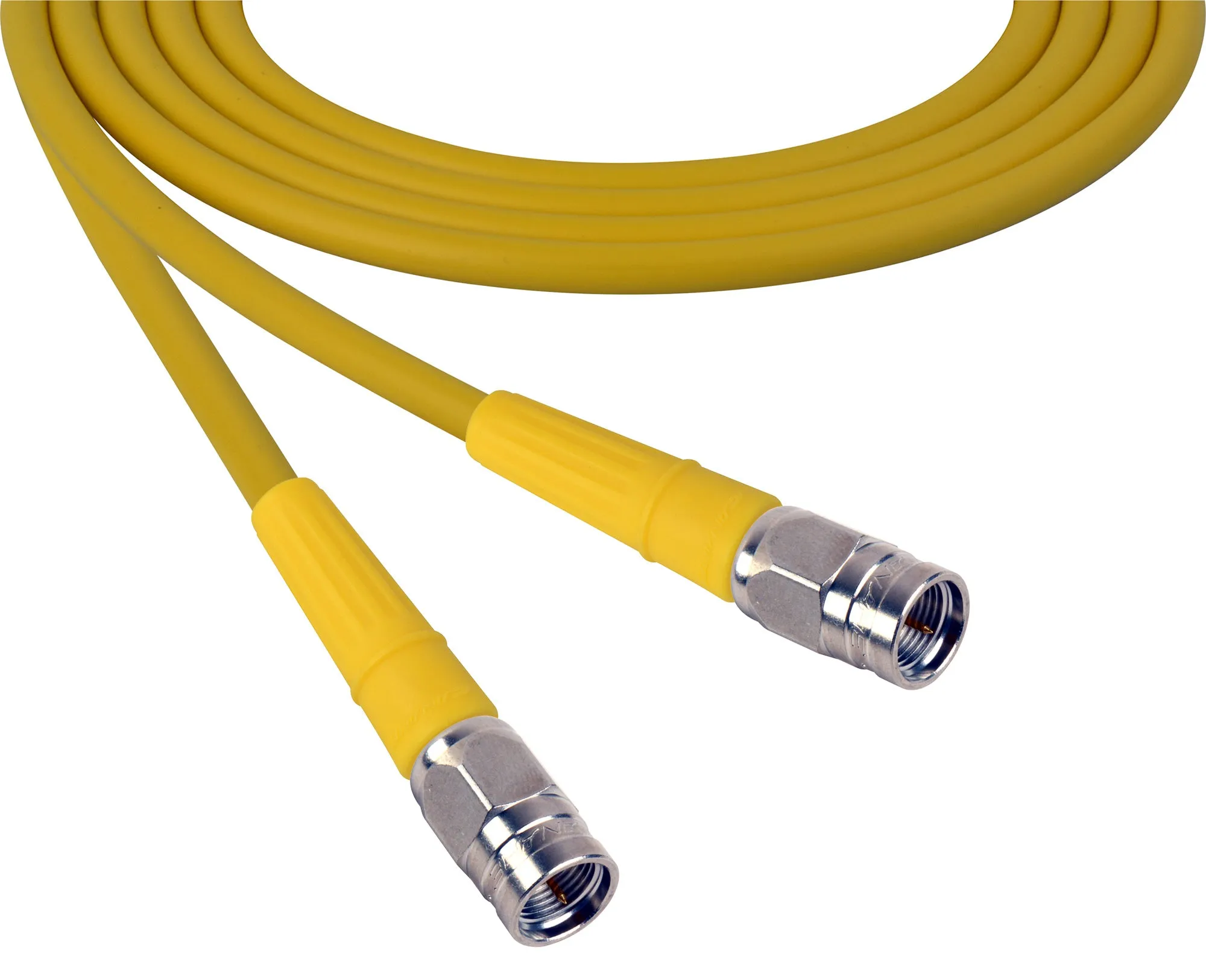

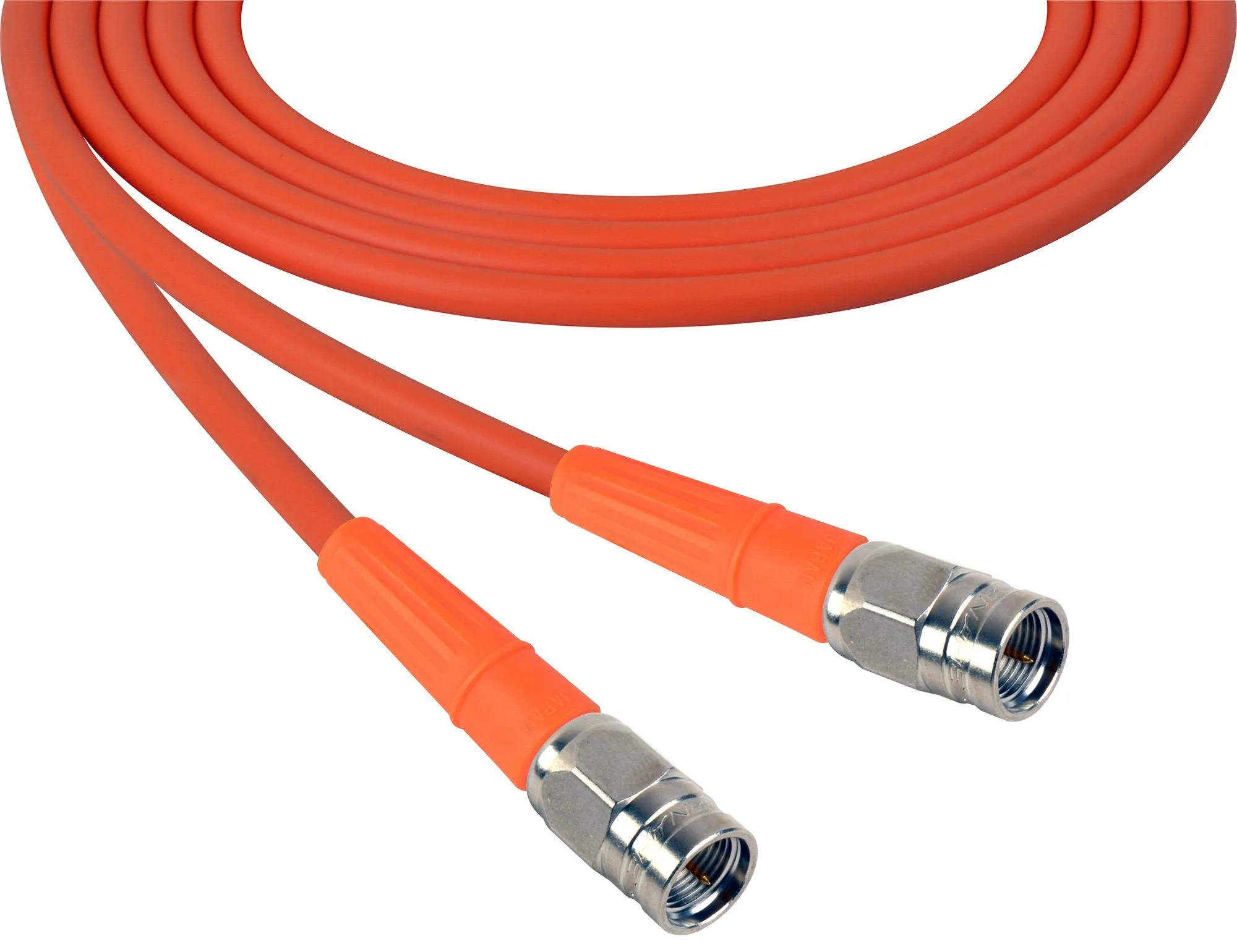

Hand Crafted in our shop with Belden 1505A RG59 Precision Video Coax for HD-SDI HDTV and SDI Transmission. These Low Loss Digital Coax Cables are Sweep Tested 5MHz to 1GHz.
1505A Technical Details
- Number of Coax: 1
- RG Type: 59/U
- AWG: 20
- Stranding: Solid
- Conductor Material: BC - Bare Copper
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
- Outer Shield Material Trade Name: Duofoil
- Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Plenum Number: BL-1506A
- Nom. Characteristic Impedance: 75 /- 1.5O
- Applications: Precision Video Cable for Analog and Digital, Broadcast Coax, Precision Video Cable for Analog and Digital, HDTV/SDI, Coax Cables
