Model: 8888-G-US10B

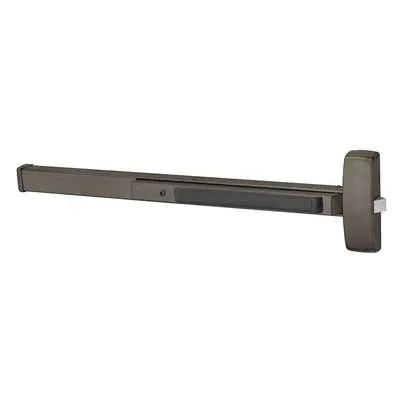

Sargent 8888-G-US10B Rim Exit Device, Multi-Function, Exit Only, 43-48" Device, Hex Key Dogging, Grade 1, Non-Handed, US10B/613 Dark Oxidized Satin Bronze Oil Rubbed Finish
Sargent 8888-G-US10B Reversible Rim Exit Device Oxidized Satin Bronze / Oil Rubbed 43-48" Door Widths, The Sargent 8888 Is a Reversible Rim Exit Devices Multi-Function Grade One Surface Mounted Panic Bar Non-Rated With Hex Key Dogging, The 8888 Is Non-Handed Seven Functions Determined By The Function Of The Trim. Multi-Function Exit Device, Panic Trim decides Function, Field Reversible
Panic Trims Sold Separately that work with the 8888 Multi-Function Sargent Exit/Panic Bar
- Product Specs
| Vendor | Assa Abloy |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
- Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 48" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
